Electronic Payments (Pay Later)

These instructions detail how to enter payment information into MoversSuite to process a payment later. This process “captures” the information now, so it is available later. The instructions are:

1. Open and complete the Capture Credit Card Information screen.

2. Complete the secure hosted payments page.

3. Complete prompt after successful payment processing or canceling the process.

4. Email, Print, or Void receipt.

5. Cash Receipt is generated.



STEP 1: Open and complete the Capture Credit Card Information.

From the Accounting Tools Menu, choose Capture Credit Card Information to open that Capture New Payment Method screen. Of note, it is named this because one of the electronic merchants can process bank account information in addition to credit cards. Complete the fields and functions using the Capture New Payment Method for details and instructions on this screen. Be sure to check the Attach Credit Card to this Customer box. (This may say “Bank Account” depending on options chosen.) Click Setup Account Information.



Graphical user interface, text, application

Description automatically generated

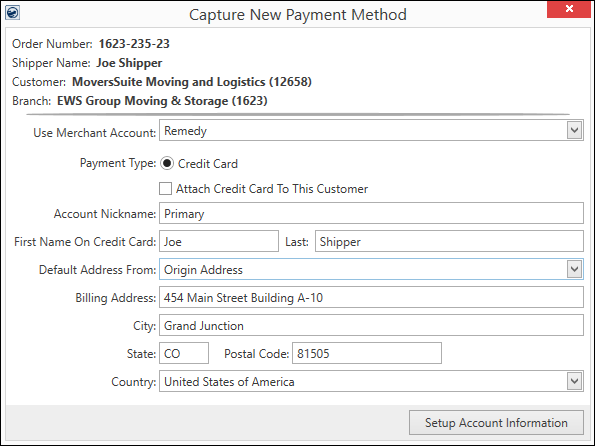

Figure 10: Capture New Payment Method screen



STEP 2: Complete the payment page.

When you press Setup Account Information from the Capture New Payment Method screen, MoversSuite opens a secure hosted payments page which connects you with your merchant service provider.



The exact format of the page will be determined by the electronic merchant service provider chosen within the Use Merchant Account field on the Capture New Payment Method screen.



•     For Remedy (option chosen in Figure 10), the secure hosted payment page is called Remedy Payment Page. Complete the payment information and click Register to capture the payment information (Figure 11).

•     If CSI Pay was chosen as the Merchant Account, their page is called Secure Payment Form (see tab name); however, the screen reads: Secure Tokenization Form. Enter bank or credit card information and send the request to the provider by pressing Process Tokenization (Figure 12).



Note: Time-sensitive security tokens messaged between MoversSuite and the service provider may time out if this form is not completed in set limit, such as 10 minutes. In such case, an error message displays, and you may need to cancel and resend the payment.



Graphical user interface, text, application, email

Description automatically generated

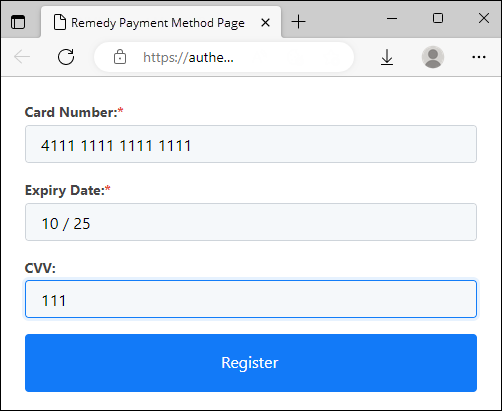

Figure 11: Secure hosted payment method page for Remedy Payments



Graphical user interface, application

Description automatically generated

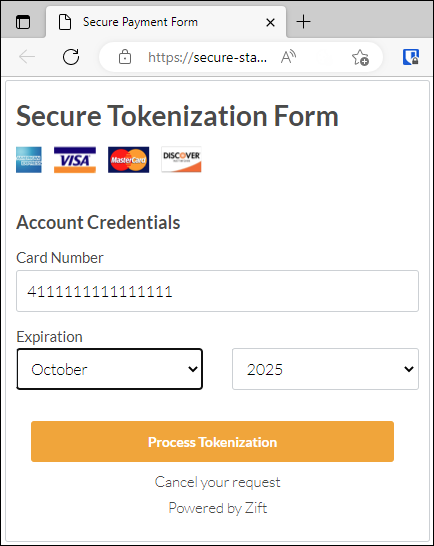

Figure 12: Secure Tokenization Form from CSI Pay



STEP 3: Complete prompt after successful payment processing or canceling the process.

This is a MoversSuite generated screen. It appears once MoversSuite contacts the payment processor.  The “web browser window/tab” is referring to the secure hosted payment page, i.e., Remedy Payment Page or the Secure Payment Form from Step 2. Read the message: Click me after the payment has succeeded or been cancelled.



Graphical user interface, text, application

Description automatically generated

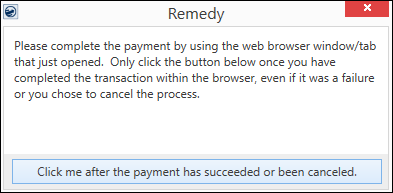

Figure 13: Prompt that appears when a payment or cancel is being processed on a separate web browser page



Once the payment processes or is cancelled, press Click me after the payment has succeeded or been canceled button.



Information with solid fill

The web form generates using your default web browser application, such as Microsoft Edge, Google Chrome, or Firefox, etc. Contact EWS Group Support if you need to have the form generated by MoversSuite itself using internal embedded .NET WebBrowser control.



If errors return to the Secure Payment Form or Remedy Payment Page, attempt to correct them prior to closing the page. Errors appear at the top of the page.



NOTE: Remedy has a processing rule that if the same transaction (same card and same amount) is re-submitted within 1200 seconds (20 minutes), then the second one or any others within that 20-minute window) will get rejected as a duplicate. This is to prevent people from clicking the payment button twice or hitting the back button and re-submitting twice.





STEP 4: Result of payment capture is shown.

The application produces either a Card Capture Success or a Card Capture Cancellation screen depending on whether the capture was successfully processed or not.



Graphical user interface, text, application, email

Description automatically generated

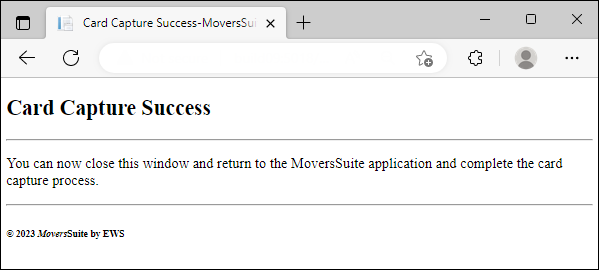

Figure 14: Card Capture Success screen





STEP 5: Payment information is available within payment dropdowns for future use.

Payment information is now available within credit card dropdowns for that Customer.



 Graphical user interface, text, application

Description automatically generated

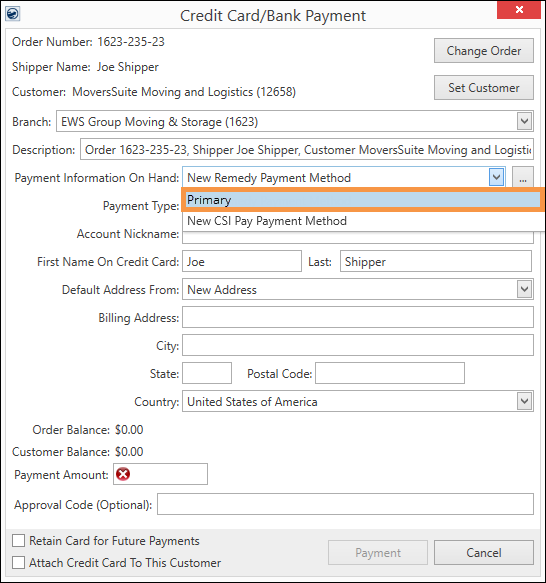

Figure 15: Credit Card is attached to this Customer and is available in payment dropdowns.
