You can configure MoversSuite to accept orders and leads originating from Atlas SUDS using either a flat file or in an XML file. (It is recommended to use an XML file; therefore, the setup for XML is listed under Setup Information listed below.) Orders downloaded into MoversSuite from Atlas SUDS are updated, if a record already exists, or a new order record is established.
If Auto Dispatching is enabled on your system, then trips on new downloaded orders are assigned accordingly to drivers within Long Distance Dispatch.
For flat file downloads, the application reads and interprets each line of text (.TXT) file and processes the data accordingly. The location of the file is specified within the Queue Service Setup along with a retry and error queue. Error messages encountered during the process are captured by MoversSuite and recorded in the Third Party Application Error Management screen.
XML downloads are processed through the Standard XML Pipeline. XML request, retry, and error files are located at the sites specified within Queue Service Setup. The application processes the files and records any error encountered within the Third Party Application Error Management screen. In addition to this automated process, you can also manually download an Atlas order through the Atlas – Download Request option within the Tools Menu (keyboard shortcut: ALT+T+Q).

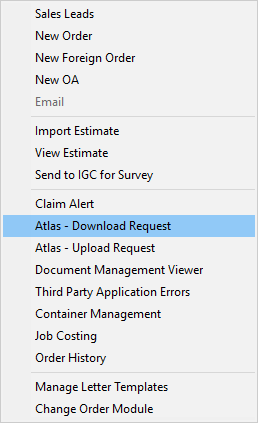

Figure 5: Tool Menu
MoversSuite checks to see if the order download includes a Previous Order (PREORD) attribute. If one is found, then this number is compared to any existing Atlas order in MoversSuite and, if it’s found, then we update the Order Number in MoversSuite to reflect the new order associated with the download.
|
|
The Order Number change described above only occurs if there are not accounting transactions generated for the prior order. If transactions are attached to the PREORD, then that order remains and a new order will be created based on the new shipment coming in from Atlas. |
MoversSuite also recognizes when an Atlas order is cancelled. When an Atlas order comes down with a status indicating that it is a cancelled order and, if your system is defined to recognize this state and update the Order Status accordingly, then the order will be assigned to a cancelled Order Status. The setup required to support this functionality requires a Shipment Status of “CAN” to be associated with the Atlas interface, and then to also have the Set Order Status To assign the MoversSuite Order Status to one that is a cancelled state. This is accomplished through Shipment Status Setup.
The data downloaded for either XML or flat-file format is the same.
