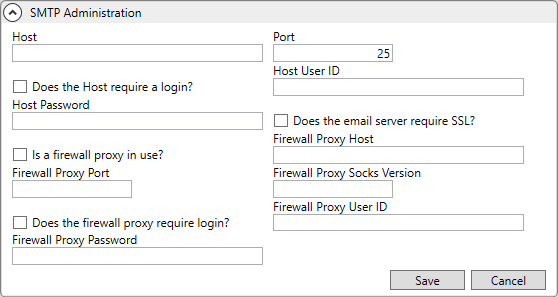

Field

Description

Host

This is the Uniform Resource Locator (URL) of the mail provider or mail hosting service, e.g. “mail.movingcompany.com” (up to 100 characters).

Port

Enter the port number for the server depending on the use.

Examples:

21 for FTP

25 for SMTP

80 for HTTPS

119 for NNTP

Does the Host require login?

Check this flag if the Host site requires authentication.  If authentication is required, then set the Host User ID and Host Password credentials.

Host User ID

If the host requires login, enter the provided identification (up to 50 characters).

Host Password

If the host requires login, enter the provided identification (up to 50 characters).

Does the email server require SSL?

If the email server that MoversSuite references for email functions requires TLS/SSL (security) authentication encryption protocol, then check this option to turn on this protocol for messages sent from MoversSuite.

Is a firewall proxy in use?

Check this flag if the Host site has a firewall proxy.

Firewall Proxy Host

If the host has a firewall proxy, enter the provided identification (up to 100 characters).

Firewall Proxy Port

If the host has a firewall proxy, enter the proxy host port number.

Enter the proxy host port number (refer to the Port field values above), if a firewall is in use.

Firewall Proxy Socks Version

Enter the SOCKS version, if a firewall is in use:

0 – No SOCKS

1 – SOCKS 4

2 – SOCKS 4A

3 – SOCKS 5

Does the firewall proxy require login?

Check this flag if a firewall is in use and needs authentication.

Firewall Proxy User ID

If the firewall proxy requires login, enter the user identification to access the firewall proxy host (up to 50 characters).

Firewall Proxy Password

If the firewall proxy requires login, enter the password to access the firewall proxy host (up to 50 characters).
