MoversSuite Administration > Administration > SMTP
This setup provides the settings needed for MoversSuite to communicate with defined hosts such as a mail server needed for the Automatic Email Service and Monitor Orders Service functionality.

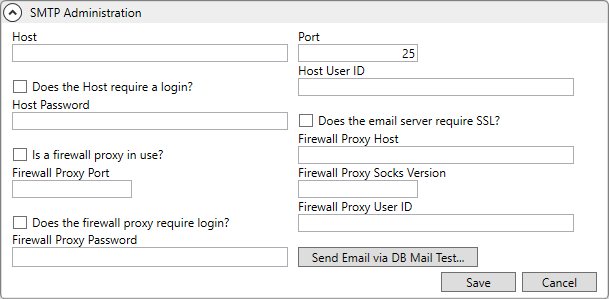

Figure 14: SMTP Setup
The following table describes the settings available within this setup.
Field |
Description |
Host |
This is the Uniform Resource Locator (URL) of the mail provider or mail hosting service, e.g. “mail.movingcompany.com” (up to 100 characters). |
Port |
Enter the port number for the server depending on the use. Examples: 21 for FTP 25 for SMTP 80 for HTTP 119 for NNTP
|
Does the Host require login? |
Check this flag if the Host site requires authentication. If authentication is required, then set the Host User ID and Host Password credentials. |
Host User ID |
If the host requires login, enter the provided identification (up to 50 characters). |
Host Password |
If the host requires login, enter the provided identification (up to 50 characters). |
Does the email server require SSL? |
If the email server that MoversSuite references for email functions requires TLS/SSL (security) authentication encryption protocol, then check this option to turn on this protocol for messages sent from MoversSuite. |
Is a firewall proxy in use? |
Check this flag if the Host site has a firewall proxy. |
Firewall Proxy Host |
If the host has a firewall proxy, enter the provided identification (up to 100 characters). |
Firewall Proxy Port |
If the host has a firewall proxy, enter the proxy host port number. Enter the proxy host port number (refer to the Port field values above), if a firewall is in use. |
Firewall Proxy Socks Version |
Enter the SOCKS version, if a firewall is in use: 0 – No SOCKS 1 – SOCKS 4 2 – SOCKS 4A 3 – SOCKS 5
|
Does the firewall proxy require login? |
Check this flag if a firewall is in use and needs authentication. |
Firewall Proxy User ID |
If the firewall proxy requires login, enter the user identification to access the firewall proxy host (up to 50 characters). |
Firewall Proxy Password |
If the firewall proxy requires login, enter the password to access the firewall proxy host (up to 50 characters). |
Use this button to send a sample mail to any of your specified email account(s) with customizable email subject and body via the MoversSuite API service.
If this button is clicked and the DB Mail has been deactivated through Global System Option, a warning will appear indicating the DB Mail is deactivated. |
