Equus Integration Setup and Administration

Given below is a list of setup areas that need to be configured for a successful Equus Integration, along with a recommended order. These steps can be used to download and upload orders to/from Equus AssignmentPro.

PREREQUISTES:

•    You, or your vendors, are currently established and using Equus AssignmentPro.

•    Contact EWS Group to initiate Equus Integration setup and manage MoversConnect settings for your organization.

•    Obtain private and public keys from Equus for each supported vendor. These keys are utilized in STEP 3: Add an XML System record (below).

STEPS:

1.    Verify that EWS Group has provided your company the Equus Upload module.

2.    Establish an Equus record within XML Interface Setup.

3.    Add an XML System Setup record to support the Order Information data exchange. Use this setup to generate RSA Keys from within XML System Setup and email key information to Equus for creating a connection with MoversSuite.

4.    Map storage requirements through the Storage Requirement Setup to external codes for Equus.

5.    Map supported Note Type Setup records.

6.    Verify that Country Code Setup contains the correct Van Line Country Code values.

STEP 1: Verify Equus Upload Module is Available

Contact EWS Group and confirm that the version of MoversSuite that you are on has the Equus Upload module enabled. Please note that there is no specific security setup needed to enable users to access Equus functionality. Refer to Security Modules for more information.

STEP 2: Add an XML Interface record

Setup Area: XML Interface Setup

Establish a record within XML Interface Setup for Equus. Set the Vendor Name to “Equus.”  Additionally, for each supported agent (branch) that you wish to receive Equus leads, assign the appropriate External Code provided by Equus.

Figure 2: XML Interface Setup

STEP 3: Add an XML System record

Setup Area: XML System Setup

Create a system record for the Equus Interface. Set the Internal System and External System values to “Equus Service Order.”

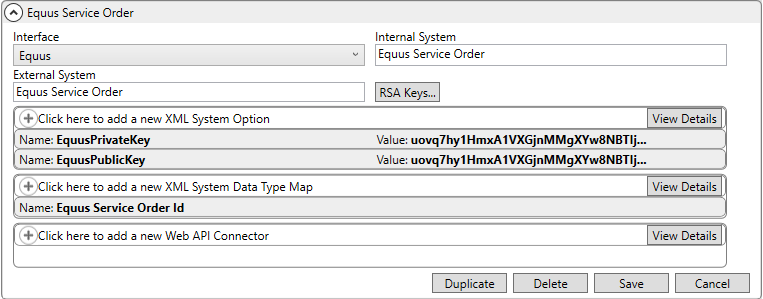

Figure 3: XML System Setup

For this record, add two XML System Option values. These keys are provided by Equus.

Create a single XML System Data Type Map value:

Generate RSA Keys

Click the RSA Keys button to pop open the RSA Keys dialog to generate a public key that needs to be provide to Equus for electronic correspondence. Press the Generate RSA Keys button to generate the Public Key. This key is used to verify your company identity for sending uploads to Equus.

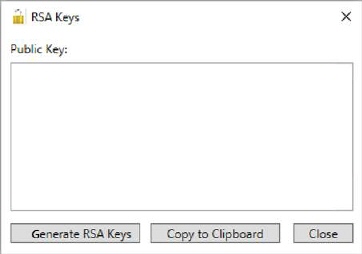

Figure 4: RSA Keys

If the key has already been generated, you can use the Regenerate RSA Keys button in order to generate a fresh key.

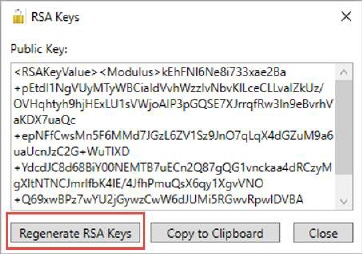

Figure 5: RSA Keys

Use the Copy to Clipboard function to select the key and to paste it into correspondence with Equus.

STEP 4: Map Storage Requirements

Setup Area: Storage Requirement Setup

Update Storage Requirement Setup records to map Upload Code values for each supported type.

Figure 6: Storage Requirements Setup

To define a supported type, update Storage Requirement Setup records to include Upload Code values as documented in the following table. Please note that you can have multiples of each type, i.e. you can assign “SIT” to the Upload Code of multiple records.

STEP 5: Map Note Type Setup records

Setup Area: Note Type Setup

Verify that Note Type Setup records are defined for each supported type.

Figure 7: Note Type Setup

The following Note Types must exist on your system.

NOTES:

“Equus” notes are created when a download includes special instructions.

“EquusCancl” notes are created when a download cancels an order.

“EquusUploa” notes are created when an order is successfully uploaded to Equus AssignmentPro.

STEP 6: Verify Country Code Setup records

Setup Area: Country Code Setup

Verify that Country Code Setup records are defined for each supported country. The Van Line Country Code must be set to the valid ISO 3166 Alpha-3 code, i.e. “USA” for the United States of America.

Figure 8: Country Code Setup

Each country that is to be reference on addresses uploaded to Equus AssignmentPro must be validated.

Verify that the countries which will be set on addresses that will be uploaded to Equus AssignmentPro have a valid ISO 3166 Alpha-3 code set on their Van Line Country Code field. For example:
