BI Tool Stock Ticker

Dashboard/Edit Reports > Properties > Components > Stock Ticker



Stock Ticker is a great tool to use when comparing data over time. For example, if you want to compare Billings year-to-date as compared to last year, this will help you.

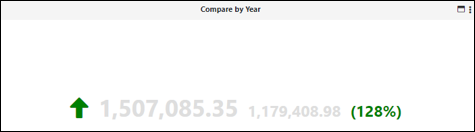

A screenshot of a computer

Description automatically generated

Figure 101: Stock Ticker option





When Stock Ticker is chosen from Components, the options listed include the Stock Ticker Settings and Details Settings. If needed, BI Tool Details Settings for more details on using the Details Settings button.



Graphical user interface, application, table

Description automatically generated with medium confidence

Figure 102: Stock Ticker options





When Stock Ticker is selected, the Stock Ticker Settings screen opens and a Title, Value Field, Date Field, Date Range, and Boundaries can be set. Users can enter one Date Range if they just need a number (i.e., number of new contracts this year). If the difference between two different periods is wanted, then enter both Date Ranges. Users will need to enter the Boundaries values to decide on the colors to display for the boundary range. Click + to save the value. Select a value from the list and click X to remove it. The boundary values are dependent on your report and field value.



NOTE: Choosing a Second and Third setting within BI Tool Data Sources  is needed to see a drilldown through the Details when using a Stock Ticker type report.

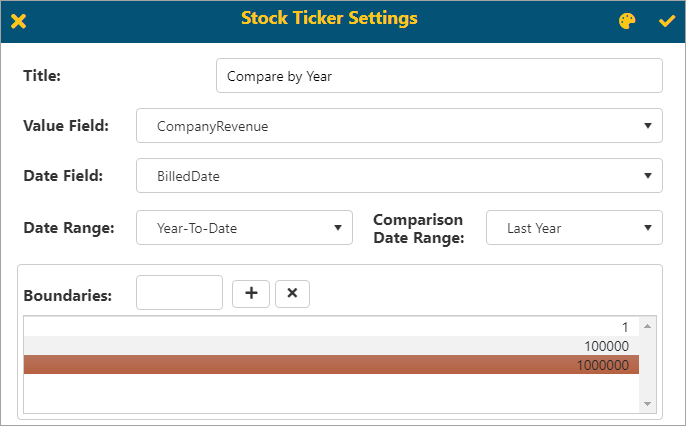

Graphical user interface, application

Description automatically generated

Figure 103: Stock Ticker Settings screen
