BI Tool Main Level Settings

BI Tool Dashboard/Report Edit screen > BI Tool Properties

Use this screen to define which columns from this view are to be used in the report and how that information is organized within the report. The functionality for Main Level Setting is the same as the Second Level Settings button and the Third Level Settings button.

The information within Main Level Settings was set with BI Tool Configuration/Data Sources > BI Tool Data Sources > Main. Likewise, Second Level Setting are what is set within BI Tool Configuration/Data Sources > BI Tool Data Sources > Second. Third Level Setting are what is set within BI Tool Configuration/Data Sources > BI Tool Data Sources > Third.

The “Columns,” “Grouping,” “Sorting,” and “Summarize By” tabs are used to choose and organize the report data. Details on how to use this functionality is found in BI Tool Columns Grouping Sorting and Summarize By.

The Main Level Settings screen is accessed from several areas of the BI Tool, such asthe Details Settingsscreen (see BI Tool Details Settings) and the Main Level Settings Button on the BI Tool Properties screen. the Main Level Settings Button on the BI Tool Properties screen.

Table

Description automatically generated

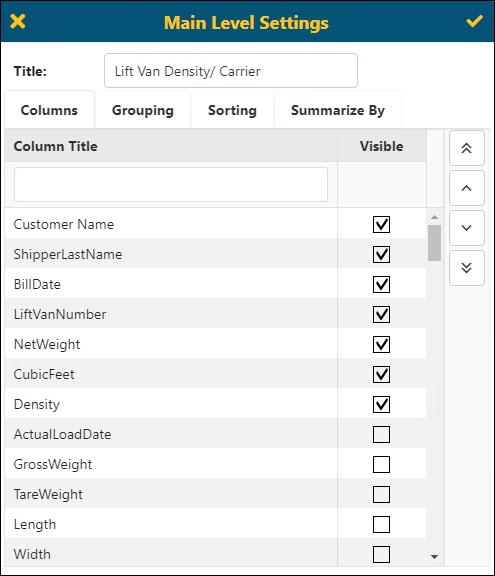

Figure 119: Main Level Settings screen

Details on the fields and their functionality are in the table below:

Field	Function
Title	The description entered here will be the title of the component displayed in the report/dashboard
Columns	See BI Tool Columns Grouping Sorting and Summarize By for details
Grouping	See BI Tool Columns Grouping Sorting and Summarize By for details
Sorting	See BI Tool Columns Grouping Sorting and Summarize By for details
Summarize By	See BI Tool Columns Grouping Sorting and Summarize By for details
	Click the Exit icon to exit the screen without saving changes or updates
	Click the Save icon to save the changes or updates made to the screen
	Click to move to the top of the list. For functionality as it applies to use within a tab, see BI Tool Columns Grouping Sorting and Summarize By.
	Click to move up one row in the list. For functionality as it applies to use within a tab, see BI Tool Columns Grouping Sorting and Summarize By.
	Click to move down one row in the list. For functionality as it applies to use within a tab, see BI Tool Columns Grouping Sorting and Summarize By.
	Click to move to the bottom of the list. For functionality as it applies to use within a tab, see BI Tool Columns Grouping Sorting and Summarize By.
