Duplicate Mappings Warning



A Duplicate Mappings Warning appears if there the same Van Line Service Code is assigned to more than one Item Code Setup record.





This warning appears at the top of the Item Code Setup pane. You can click on the warning to display the details.



Graphical user interface, text, application, email

Description automatically generated

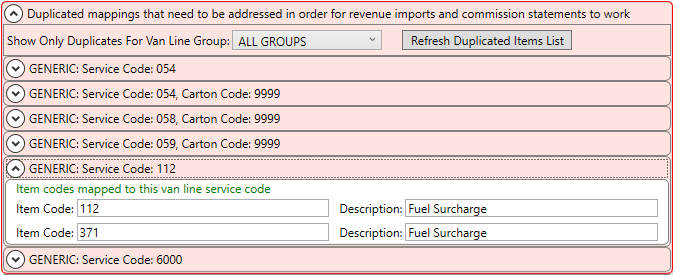

Figure 79: Duplicate mapping record warning atop Item Code Setup.



The details illustrate which codes are assigned to multiple Item Codes. In the example below, Item Codes “112” and “371” each have mappings to the Van Line Service code of “112.”



It is recommended that you remove all duplicate warnings to avoid errors during statement or revenue imports. To correct these duplicates, you can do one of three things:

    Change the Van Line Service Group associated to the mapping

    Change the Van Line Service Code to one that is unique

    Remove the mapping altogether



For example, if Item Code “371” should have a mapping to a code of “371” and not “112,” then you can search and open the Van Line Service Code to Item Code Mapping record.



Graphical user interface, text, application, email

Description automatically generated

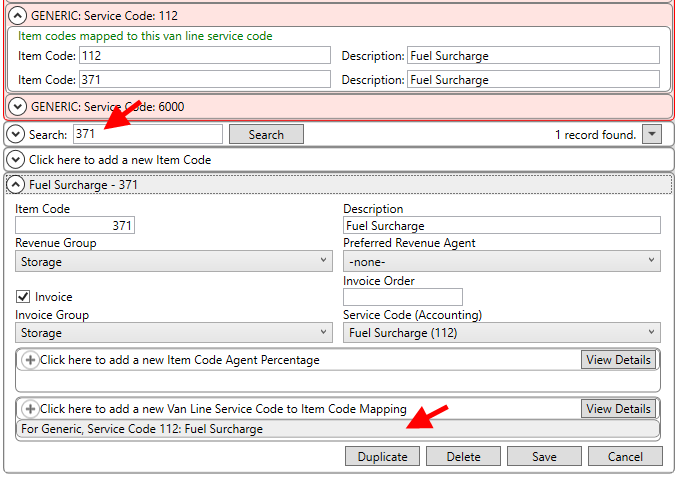

Figure 80: Search and open of an example Item Code Setup record.



Click on the mapping to edit and update the Van Line Service Code value and press Save.



Graphical user interface, application, Word

Description automatically generated

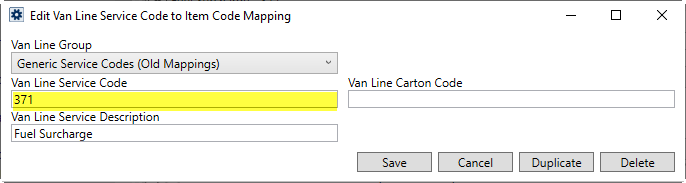

Figure 81: Example Add/Edit Van Line Service Code to Item Code Mapping dialog



Work through the list of duplicates have all been corrected. You can use options at the top of the details listing to display only mappings for a particular Van Line Group and to refresh the details listing. The list of groups references the External Code of a group as defined within Van Line Group Setup.



Graphical user interface, application

Description automatically generated

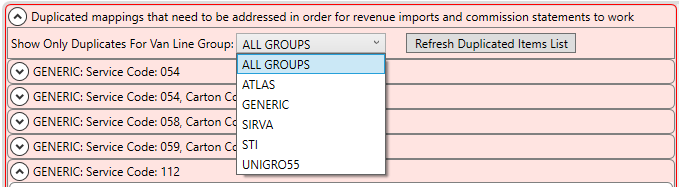

Figure 82: Group listing expansion in Duplicate Mappings Warning detail listing



Once all the duplicates are resolved, the warning displays in green during your current session. The next time you log back into the Admin Tool, the warning will no longer show.
