Add Product Information



Use the Add Product Information dialog to add and edit specifics of equipment on a shipment. The product data is used primarily in data exchanges with third-party applications, such as the UniGroup Special Services Upload.

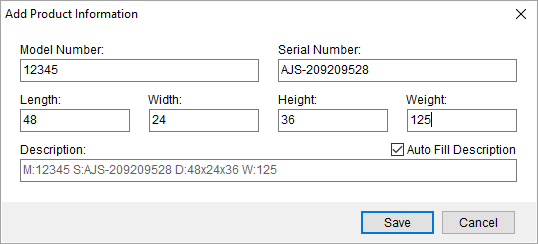

Figure 73: Product Information dialog



Access to this dialog is through the Add and Edit buttons in the Product Details tab within Shipment Information. This data displays within the Product Details tab within Shipment Information.





Technical Field and Function Information



Fields available within the Product Information Screen are described in the table below.



Field

Description

Model Number

Provide a model number for the product (up to 20 characters).



Field Details



Schema:

Orders.PriKey links to

SCShippingDetails.OrdPriKey displays

SCShippingDetails.ModelNumber

Size:

20 characters

Connections:

UniGroup Special Services Upload Contents

Serial Number

Provide a serial number for the product (up to 32 characters).



Field Details



Schema:

Orders.PriKey links to

SCShippingDetails.OrdPriKey displays

SCShippingDetails.SerialNumber

Size:

32 characters

Connections:

UniGroup Special Services Upload Contents

Length

Enter the item length.



Field Details



Schema:

Orders.PriKey links to

SCShippingDetails.OrdPriKey displays

SCShippingDetails.Length

Size:

4 digits

Connections:

UniGroup Registration Download Content

UniGroup Special Services Upload Contents

Height

Enter the item height.



Field Details



Schema:

Orders.PriKey links to

SCShippingDetails.OrdPriKey displays

SCShippingDetails.Height

Size:

4 digits

Connections:

UniGroup Registration Download Content

UniGroup Special Services Upload Contents

Width

Enter the item width.



Field Details



Schema:

Orders.PriKey links to

SCShippingDetails.OrdPriKey displays

SCShippingDetails.Width

Size:

4 digits

Connections:

UniGroup Registration Download Content

UniGroup Special Services Upload Contents

Weight

Enter the item weight.



Field Details



Schema:

Orders.PriKey links to

SCShippingDetails.OrdPriKey displays

SCShippingDetails.Weight

Size:

4 digits

Connections:

UniGroup Registration Download Content

UniGroup Special Services Upload Contents

Auto Fill Description

Check this flag (default) to have the Description built based on other data set for this record.

The application creates a Description as a string containing the following labels referencing other product fields set within this dialog.



Label

Field Mapped to the Label

M:

Model Number

S:

Serial Number

D:

Dimensions from Length, Width, and Height fields

W:

Weight



Reference the image above (Figure 69) for an example Description comprised of other settings with the dialog:

M:12345 S:AJS-209209528 D:48x24x36 W:125



If this flag is not set, then the Description is a free-form text entry field.



This feature is specifically referenced within the Product Details section in the following topics:

UniGroup Registration Download Content

UniGroup Special Services Upload Contents



Description

Enter a text description (up to 80 characters) for the detailed shipment item. Alternately, check the Auto Fill Description flag to have this field auto-populate based on other data set for this record.



Field Details



Schema:

Orders.PriKey links to

SCShippingDetails.OrdPriKey displays

SCShippingDetails.Description

Size:

80 characters

Connections:

UniGroup Registration Download Content

UniGroup Special Services Upload Contents

Save

Press Save to create the shipment record.

Cancel

Pressing Cancel will close the dialog without creating a record.
