MSWeb Tiles

Service “tiles” can be found in either of these two locations:



    Move Information > New Section

    Local Services > Additional Details



Graphical user interface

Description automatically generated

Figure 63: Examples of Service Tiles



As tiles are used, tiles disappear from the New Section. Tiles only show services that have not been added. When a service tile has been chosen and information entered for that service, the tile will disappear. The service will list within the appropriate section as it is in use. Each section, as shown in XX shown below are titled LOCAL SERVICE DETAIL, LABOR TYPE, LOCATIONS, etc., is expandable and collapsible. Notice in the image below that all tiles have been used and only Unpacking and Crates are left under the ADDITIONAL DETAILS card. The status is listed as Idle until it is approved.

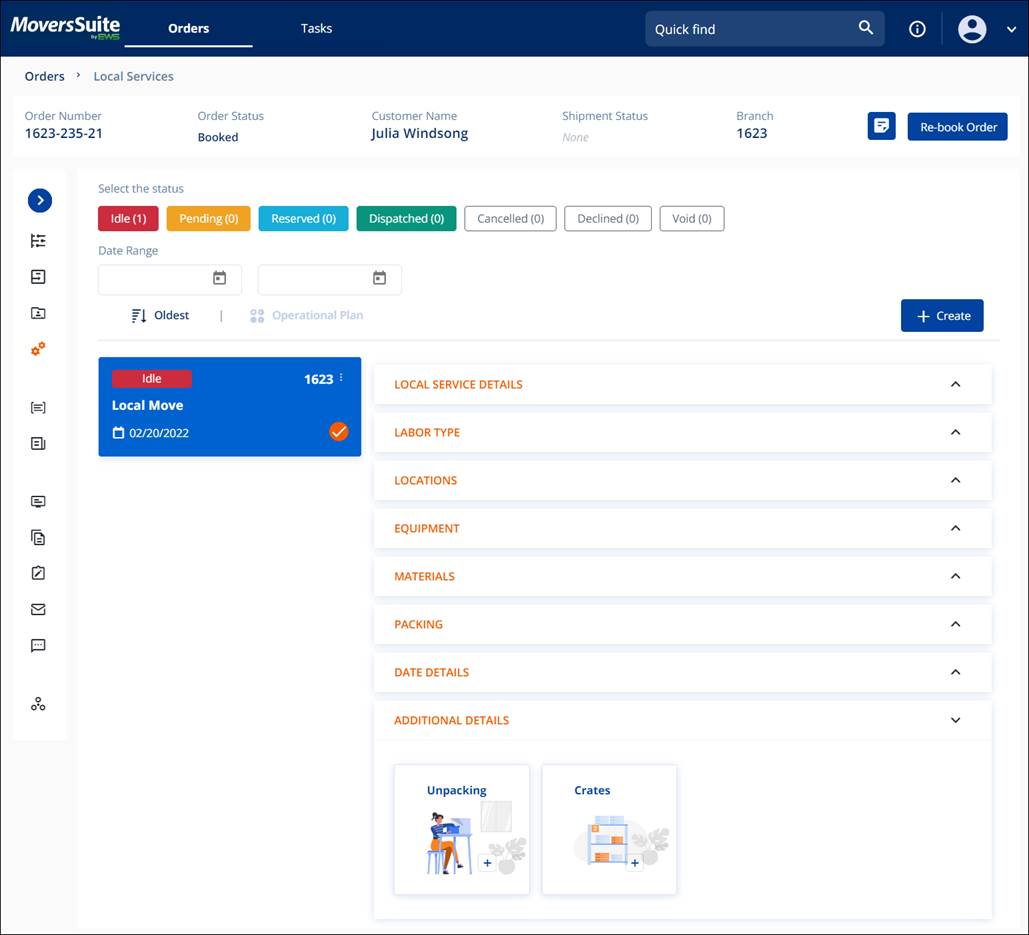

Graphical user interface, application

Description automatically generated

Figure 64: Cards can be expanded to view details



On thumbnail shown on the left, details the Service, Status, Date Created and Branch. There are also three dots, or ellipses. Click on the ellipses to Cancel Service or Send to Dispatch. If you decide to cancel the service, select Cancel Service. A confirmation dialog to confirm if we do want to cancel the service. If confirmed, the status will change to Cancelled. If Send to Dispatch is chosen, the next screen details the service being send. There is the option to add a Note. Choose either send or cancel the action. If sent to Dispatch, the status will change to Pending and will remain Pending until Dispatch chooses to accept or decline the service.



Graphical user interface, application

Description automatically generated

Figure 65: Click ellipses to Cancel or Send to Dispatch
