The Monitor Orders Service functionality relies on the Database Mail utility within Microsoft SQL Server Management.

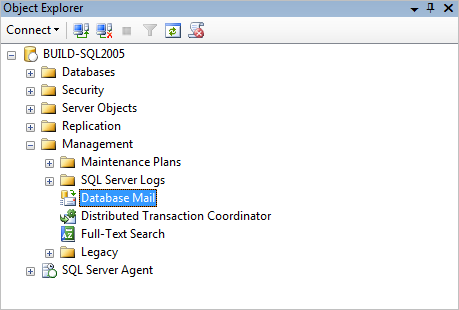

Figure 11: Object Explorer in Microsoft SQL Server Management
The following table describes the steps to take to setup Database Mail.
Step |
Description | ||||||||||||||||||
Access Database Mail option | |||||||||||||||||||
1 |
Open the Microsoft SQL Server Management application. | ||||||||||||||||||
2 |
Open a connection to the server hosting MoversSuite using the Connect > Database Server option, which opens the Connect to Server window. | ||||||||||||||||||
3 |
Select the Server name and appropriate authentication and press Connect to open. | ||||||||||||||||||
4 |
Locate the Database Mail option () within the Management folder. | ||||||||||||||||||
Create Database Mail Account | |||||||||||||||||||
The following steps instruct a user on how to add a MoversSuite mail account and profile. Instructions for editing an existing mail account are also included. | |||||||||||||||||||
5 |
Right-click on the Database Mail option and choose “Configure Database Mail”. This opens the wizard to guide the user through the setup process. Press Next. | ||||||||||||||||||
6 |
Select “Manage Database Mail accounts and profiles” from the Select Configuration Task screen and press Next. | ||||||||||||||||||
7 |
Select “Create a new account” from within Manage Profiles and Accounts screen and then press Next. When editing an account, choose “View, change, or delete an existing account”. | ||||||||||||||||||
8 |
Enter the following data within the New Account screen and press Next.
| ||||||||||||||||||
9 |
Confirm the account was added correctly on the Complete Wizard screen and press Finish to save the account. | ||||||||||||||||||
Create Database Mail Profile | |||||||||||||||||||
These steps guide you on creating a profile that links to the MoversSuite mail account created above. | |||||||||||||||||||
10 |
From the Select Configuration Task page, select “Manage Database Mail accounts and profiles” and press Next. | ||||||||||||||||||
11 |
Select “Create a new profile” from the Manage Profiles and Accounts page and press Next. | ||||||||||||||||||
12 |
Enter “MoversSuiteDBMail” for the Profile name and provide a meaningful Description. | ||||||||||||||||||
13 |
In the SMTP accounts listing, press Add and then select the “MoversSuiteDBMail” account from the listing. Verify the other fields and press OK. | ||||||||||||||||||
14 |
Press Next from the New Profile page. | ||||||||||||||||||
15 |
Verify that the profile and account link correctly and are both named “MoversSuiteDBMail” and press Finish. | ||||||||||||||||||
Test the Connection | |||||||||||||||||||
16 |
Right-click the Database Mail folder (see Step #4) and choose “Send Test E-Mail” from the list of options. | ||||||||||||||||||
17 |
Enter your email address for the “To” as the recipient of the test email then press the “Send Test E-Mail” button. The application sends a test message to the To email address to validate the Database Mail is working correctly. If a message is received from the account, then the mail utility is working and setup is complete. |
