This section describes the XML System Setup variables needed for SIRVA integration for the Request Download and Registration Upload processes along with those needed to SIRVA QPD Integration.
Create a record in XML System Setup using the following data to define a process referenced for the following:

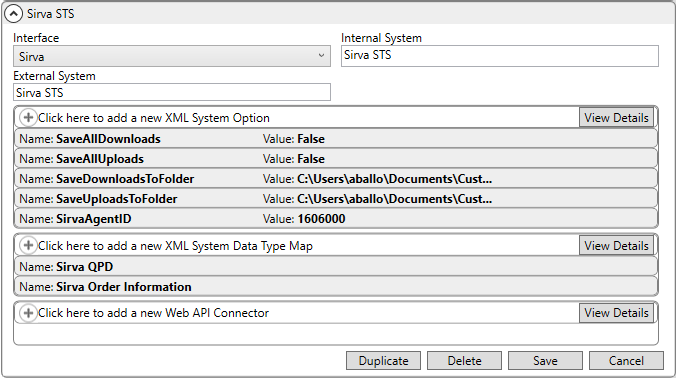

Figure 7: Sample XML System Setup
|
Field |
Description |
|
Interface |
Select the SIRVA interface. |
|
Internal System |
“Sirva STS” |
|
External System |
“Sirva STS” |
|
XML System Option | |
|
This section lists the options to let users setup both the uploads and downloads, defining the reference to system locations where all the downloads and a copy of the uploads will be stored in a uniquely named XML or JSON file. Refer to XML System Option (SIRVA) for setting up this section. | |
|
XML System Data Type Map | |
|
For the SIRVA Download Request process create the following: | |
|
Xml System Data Type |
“Order Information” |
|
Name |
“SIRVA Order Information” |
|
Clear previous XML errors before reprocessing |
Checked |
|
For the SIRVA QPD Integration create the following: | |
|
Xml System Data Type |
“Order Information” |
|
Name |
“Sirva QPD” |
|
Clear previous XML errors before reprocessing |
Checked |
