MSWeb Documents

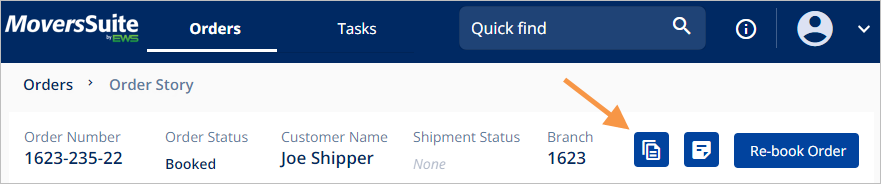

To use this new feature, click this icon to add document(s).



Graphical user interface, text, application

Description automatically generated

Figure 33: How to Add Document(s)

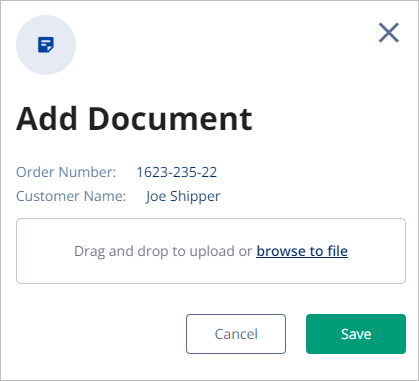

From the Add Document screen, click browse to file.



Graphical user interface, text, application, chat or text message

Description automatically generated

Figure 34: Add Documents screen

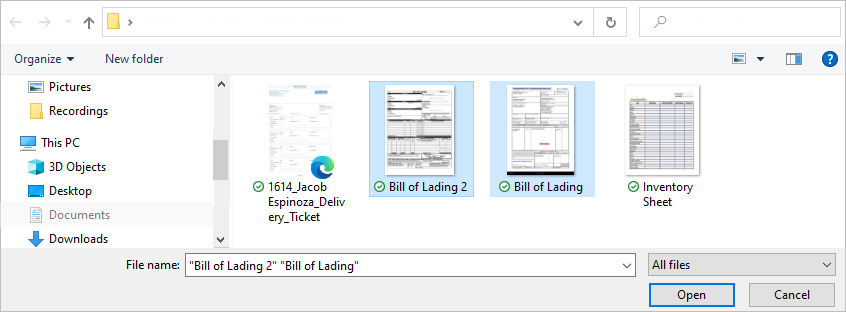

This opens your file manager. Locate the file(s) you wish to upload. In the example below, two files have been selected by holding down Ctrl while clicking on the needed files, or you many drag and drop the files. Note that when dragging and dropping a file, the file will open in another browser window as a preview. This can be helpful if you are not sure of the exact file needed. In our example below, notice both files are Bill of Ladings. Press Open.



Graphical user interface, application, Word

Description automatically generated

Figure 35: Choosing files from File Manager

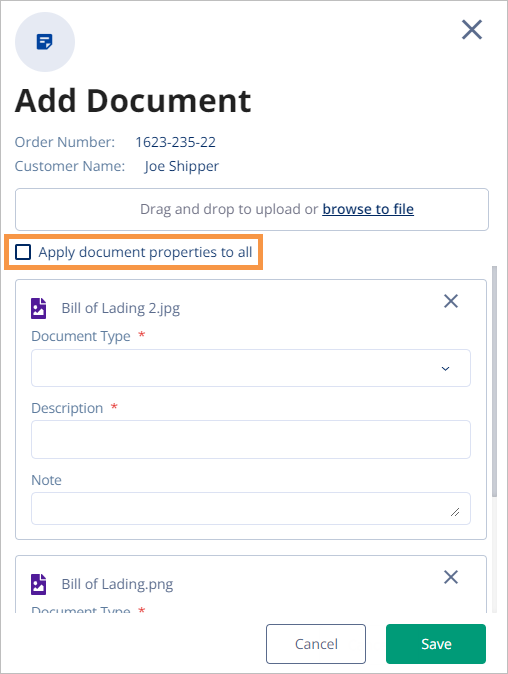

The files are added to Add Document and both documents are listed individually. Document properties can be added on a document-by-document basis using the scroll to access all documents. If all documents are the same document type, save time by clicking the Apply document properties to all button. This button will only appear if there is more than one document being added.



Graphical user interface, application, email

Description automatically generated

Figure 36: Add document properties to all

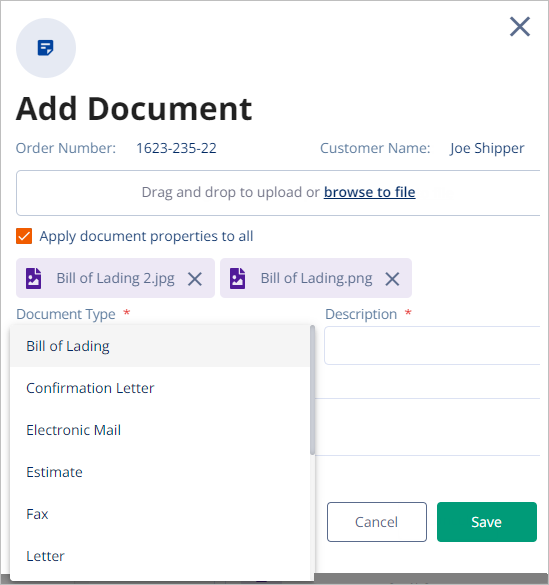

Once the Apply document properties to all button is clicked, the screen will condense, as in this example. Enter the Document Type and it will be applied to all documents. The Description will then autoload with Bill of Lading as well. Click Save.



Graphical user interface, application, Teams

Description automatically generated

Figure 37: Partial list of Document Type options

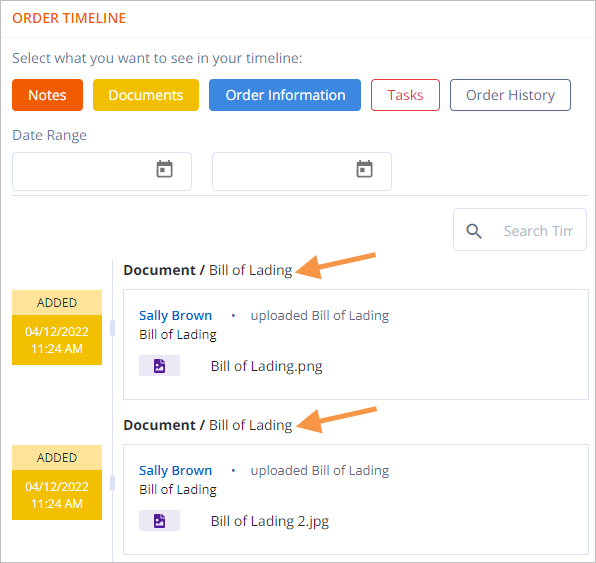

The documents will then appear on the Order Timeline. The status tile is yellow, as yellow is color coded to indicate documents. The activity is noted as Added in addition to the notation of the date and time the document as added. Additional details are in the corresponding box to the right, which include who added the document, the Document Type, the Document Description. A link to the document is also included for quick reference.



Graphical user interface, application

Description automatically generated

Figure 38: Order Timeline showing newly added documents





The file type accepted are:



Extension

Format

pdf

Portable Document Format file

txt

Unformatted text file

jpg, jpeg

Joint Photographic Experts Group photo file

png

Portable Network Graphics file

gif

Graphical Interchange Format file

docx

Microsoft Word document

csv

Comma-separated values file

tif, tiff

Tagged Image Format file

xls

Microsoft Excel workbook before Excel 2007

xlsx

Microsoft Excel workbook after Excel 2007

doc

Microsoft Word document before Word 2007

xps

XML-based document

zip

Compressed file

docm

Microsoft Word macro-enabled document

rtf

Rich Text Format file

bmp

Bitmap file

htm, html

Hypertext markup language page

xlsm

Microsoft Excel macro-enabled workbook after Excel 2007

pptx

Microsoft PowerPoint presentation

m4a

MPEG-4 audio file

mov

Apple QuickTime movie file

wav

Wave audio file

wma

Windows Media Audio file

wmd

Windows Media Download file

wmv

Windows Media Video file
